4 & 6Encapsulated-resin filled Motors

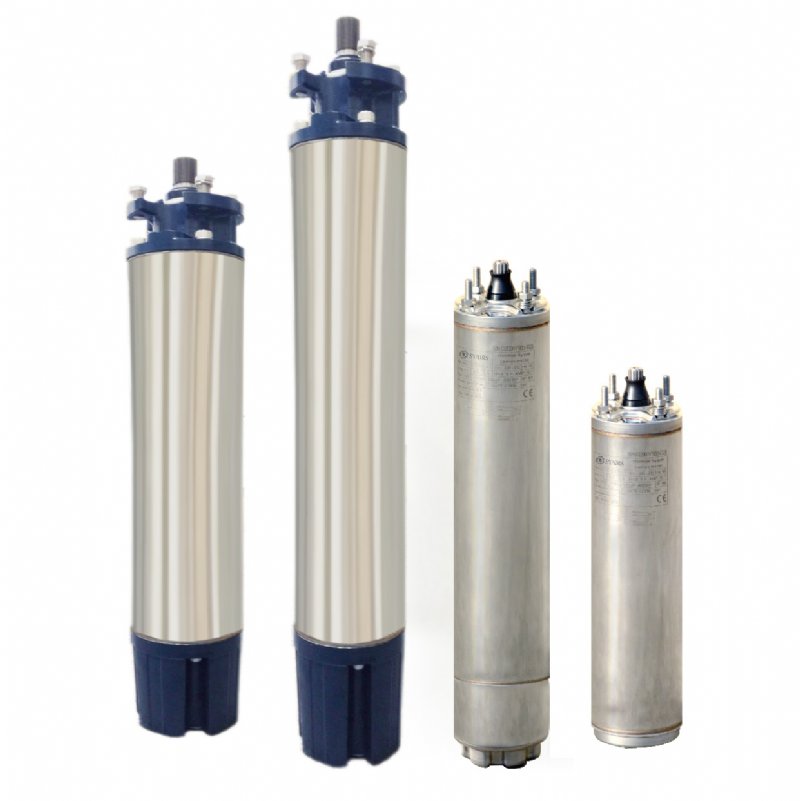

4" & 6"Encapsulated-resin filled Motors

Description

Stairs' Encapsulated motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4''& 6'' or larger well. The motor is 100% tested before shipment.
Catalogue Download 2023/04/07
Catalogue Download 2023/04/07
Catalogue Download 2023/04/07

Details

Applications

4"
●Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
●Max. Immersion depth: 200m
●Protection: IP68
●Nos. of start per hour: max 20 at regular intervals.
●Sand slinger and lip seal.
●Insulation: Class F
●Rated ambient temperature: 30°C with min.
●Cooling flow 0.08 m/s of water flow speed
●Standard installation position: vertical and horizontal

6"
●Max. Immersion depth: 350m
●Protection: IP68
●Nos. of start per hour: max 20 at regular intervals
●Insulation: Class F
●Max temp. 30° with water cooling flow min. 0.16 m/s
●Standard installation position: vertical and horizontal
●Starting method: D.O.L / Star-Delta

Features

4"
●Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
●High efficiency provides operation cost savings
●Thrust pad
●Copper wiring
●Pressure equalizing diaphragm
●Removable lead connector
●Control boxes available for single phase motor
●Standard NEMA mounting dimensions
●Lightning arrester is available in option (Single phase).

6"
●Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
●High efficiency provides operation cost savings
●Thrust Pad
●Copper wiring
●Pressure equalizing diaphragm
●Removable lead connector
●Standard NEMA mounting dimensions
●Motor with carbon and ceramic Mechanical seal.
( Optional : SiC / SiC )
